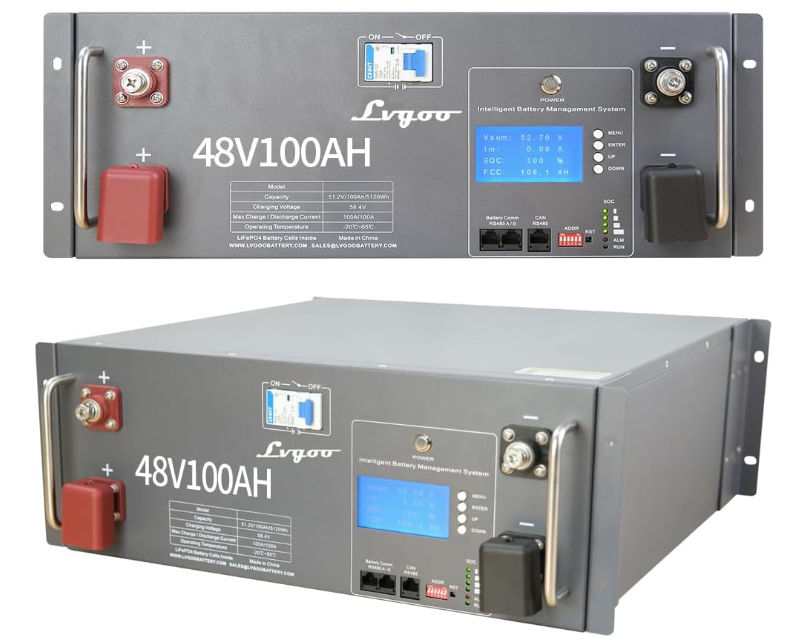

48V 100Ah LiFePO4 Multipurpose Battery Storage System
⚡ 48V 100Ah LiFePO4 Battery Storage System – High-Capacity, Long-Life Power Solution
✅ Built for Reliability, Designed for Performance
This premium 48V 100Ah LiFePO4 battery is engineered using 16 top-grade A+ lithium cells, securely fastened and encased in flame-retardant holders for enhanced heat dissipation and durability. With built-in RS485 and CAN Bus protocols, it offers seamless integration with most hybrid inverters (ensure compatible communication cables are used), making it an ideal solution for home energy storage, off-grid systems, and mobile applications.
🔋 Extended Lifespan – Up to 10 Years of Use
Experience a dramatically longer service life with 4,000 to 12,000 charge cycles depending on usage. At 80% Depth of Discharge (DOD), expect over 6,000 cycles. Thanks to its low self-discharge rate (<3%), this battery retains power during long storage periods—eliminating the need for constant recharging.
🔧 Expandable for Larger Energy Systems

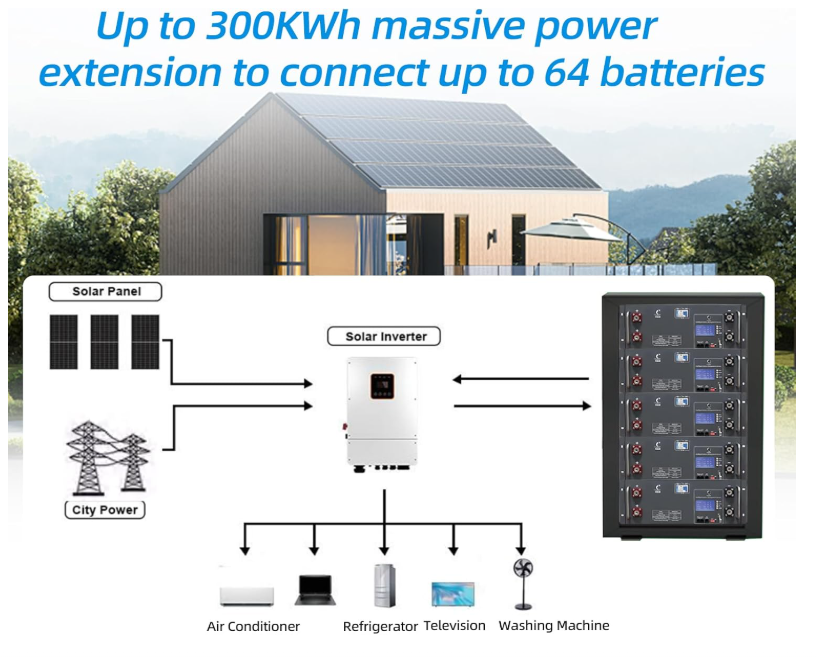

This unit supports expansion up to 64 connected packs (1 master + 63 slaves), giving you the option to scale to a massive 327.68kWh of total capacity (5.12kWh x 64). It supports up to 4 units in series or 4 in parallel (maximum configuration: 4S4P), making it ideal for home ESS (Energy Storage Systems), solar backup setups, and larger off-grid installations.
🌎 Lightweight, Versatile, and Eco-Conscious
Weighing significantly less than traditional lead-acid batteries, this LiFePO4 unit is easy to install and move, yet powerful enough for diverse applications—from solar systems, RVs, and golf carts to home alarms, electric scooters, and marine systems. No memory effect means it’s ready to perform, regardless of its current charge state.
📏 Technical Specs
Nominal Voltage: 48V
Capacity: 100Ah (5.12kWh)
Cycle Life: 4,000–12,000 (at 60–80% DOD)
Communication Ports: RS485 / CAN (with protocol compatibility)
Dimensions: approx. 19.1" (L) × 17.3" (W) × 6.9" (H)
Weight: ~94 lbs (42.6 kg)
Operating Temp: -4°F to 140°F (-20°C to 60°C)
🤝 Trusted Support & Service
Our team is committed to providing top-tier support and product safety. For questions or support, please contact us directly—we’re here to help every step of the way.
